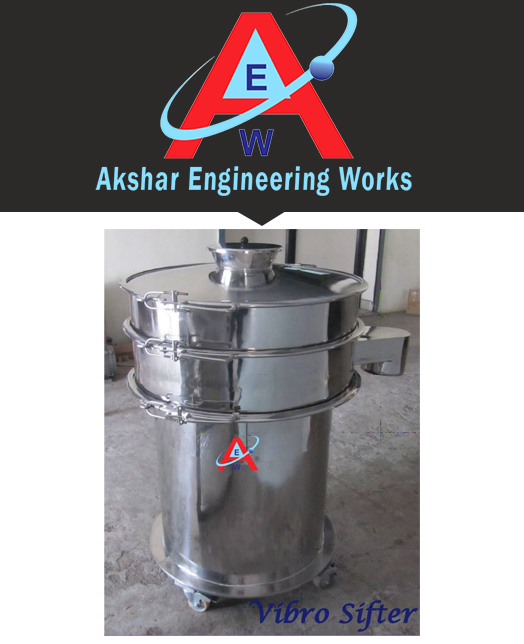

SS VIBRO SIFTER

The Vibro Sifter machine works on the principle of gyratory vibrations. The material is separated based on its particle size. Once the motor gets energized, vibration is caused in the screen/sieve making the material travel across the sieves according to its particle size.

In three different planes, the development of vibration along the vertical axis utilizing a specially designed vibratory motor that meets various output requirements. It causes 100% rotary motion and causes dispersion stirring & amp; stratification of material to sift. Feed material flows in Horizontal movement along with a loop pattern on vibro screen.

The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Rugged Springs placed over the circular motor base amplifies the vibration.

  • SALIENT FEATURES

    • Ideal for Gradation & Separation of Dry Powder, Granules, And Semi Solids / Liquids.
    • The sieves are suspended on a spring to avoid vibration on the floor.
    • We can increase the number of decks as per requirement.
    • Easy Dismantling & Cleaning.
    • Ball tray arrangement. (For choking of sieves).
    • Rubber molded sieve as optional.
    • Faster Separation due to springs.
    • Multi deck models available.
    • Same sieve as used in Mechanical sifter.
    • Lesser Maintenance and Power Consumption than the Conventional Sifter.
    • Simple & Compact construction.

    TECHNICAL SPECIFICATION


    MODEL 30" 36" 48"
    SCREENS SS 316/SS 304 SS 316/SS 304 SS 316/SS 304
    SCREEN DIA. 750 mm 950 mm 1220 mm
    CAPACITY/HOUR* 30 to 250 Kgs 80 to 300 Kgs 200 to 400 Kgs
    CHARGING HEIGHT 1200 mm 1200 mm 1050 mm
    DISCHARGE HEIGHT 750 mm 750 mm 500 mm
    ELECTRIC MOTOR 0.5 HP Vibratory Motor 0.5 HP Vibratory Motor 1.5 HP Vibratory Motor
    NET WEIGHT* 170 Kgs 200 Kgs 225 Kgs
    MACHINE DIMENSION 1360 mm x 1360 mm 1550 mm x 1550 mm 1950 mm x 1950 mm
