“AKSHAR” is a Leading Manufacturer and Supplier of Stainless-Steel Gear Pump and SS Rotary Gear Pump in India. it is widely used for transfer of Corrosive Chemicals & Viscous Liquids
SS Rotary Gear Pump, Stainless Steel Gear Pump, which is self-priming, foot mounting type positive displacement rotary gear pump. Pump having all Stainless-Steel SS 316 in three-piece construction with investment cast.
Due to three-piece construction, it can be easily cleanable and maintainable that is why it is universally used in all kinds of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble-free performance. The shaft is supported on selflubricating type Teflon coated DU Bushes and the sealing is done with Teflon based “GFO” pack sealant which gives zero leakage.

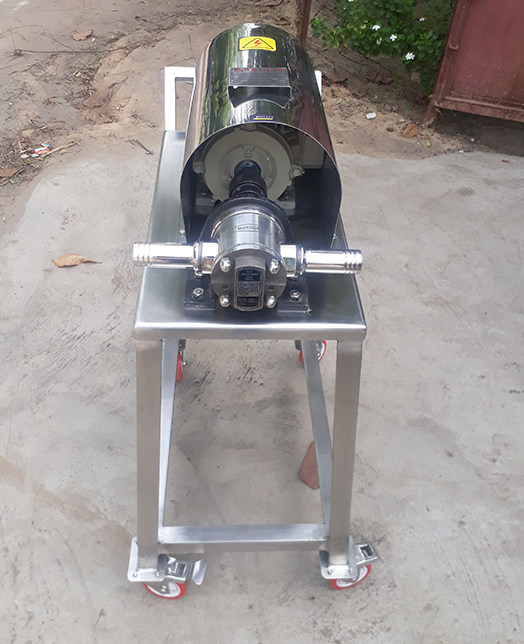

The right-angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble-free service.
The suction and delivery connection are available in 1/4" to 2 ½" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.33 LPM to 300 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum temperature up to 200ºc.
| Part | Material for AKSHAR GEAR PUMP |
|---|---|
| Pump Body | CF8M - SS 316 |
| Front Cover | CF8M - SS 316 |
| Back Cover | CF8M - SS 316 |
| Gland Cover | CF8M - SS 316 |
| Packing | Teflon Sheet |
| Sealing | "GFO" Pack Teflon/ Mech. Seal |
| Bush Bearings | Teflon Coated "DU" |
| Mounting Bracket | C.I.Gr.-20 IS 210 |
| Dom Nut | AISI SS 316 |
| Rotor/Stator Shaft | AISI SS 316 |
| R.H. & L.H. Gear | AISI SS 316 |
| Key for Coupling | SS 304 |
| Model | Suction & Delivery Size | Capacity at 1440 RPM |
|---|---|---|
| ASSGP-025 | 1/4" x 1/4" | LPM : 8, US GPM : 2.1, M³/hr : 0.50 |
| ASSRGP-040 | 3/8" x 3/8" | LPM : 15, US GPM : 3.9, M³/hr : 0.9 |
| ASSRGP-050 | 1/2" x 1/2" | LPM : 25.00, US GPM : 6.6, M³/hr : 1.50 |
| ASSRGP-075 | 3/4 x 3/4" | LPM : 30.00, US GPM : 7.9, M³/hr : 1.80 |
| ASSRGP-100 | 1" x 1" | LPM : 50.00, US GPM : 13.2, M³/hr : 3.00 |
| ASSRGP-125 | 1 ¼" x 1 ¼" | LPM : 100.0, US GPM : 26.4, M³/hr : 6.00 |
| ASSRGP-150 | 1 ½" x 1 ½" | LPM : 125.0, US GPM : 33.0, M³/hr : 7.50 |
| ASSRGP-200 | 2" x 2" | LPM : 200.0, US GPM :52.8, M³/hr :12.00 |
| ASSRGP-250 | 2 ½" x 2 ½" | LPM : 300.0, US GPM : 79.25, M³/hr :18.00 |
