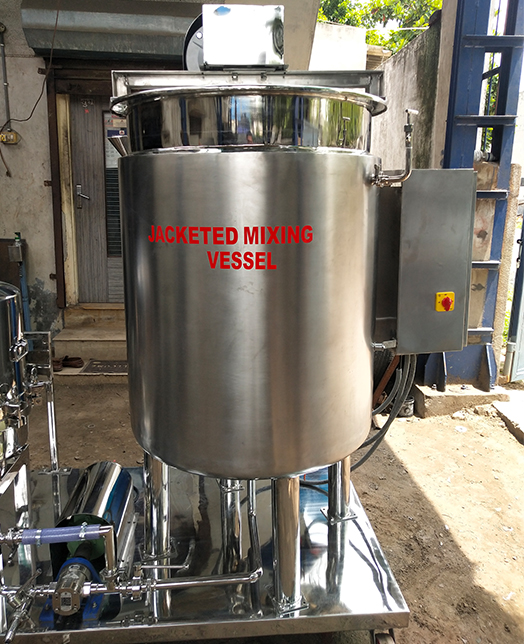

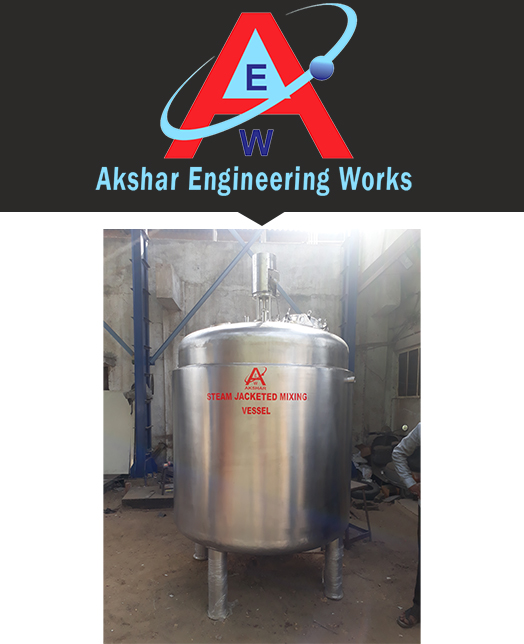

JACKETED MIXING VESSEL

Jacketed Mixing Vessel (double jacketed vessel) including jacketed steam boiler is uses for mixing.

liquid and slightly solid materials. Jacketed Mixer assembly equipped with series of paddle types of blades, pitched or at blade of appropriate shape. In Mixer two consecutive blades move in opposite direction which creates laminar thinning of the material and facilitates uniform mixing. Paddle type blades mounted on scrapping arms and welded to hollow shaft have independent drive. Paddles mounted on internal shaft creates relative movement of the material. For discharge of material different types of valves can be offered as per user requirements.

AKSHAR is manufacturer of jacketed mixer and jacketed mixing tanks in India. Our range consist Standard Jacketed Mixer as well as Vacuum Rated Jacketed Vessel. We produce these vessels in capacity ranging from 100 liters Small Jacketed Mixer to 25000 liters Industrial Jacketed Mixer

Jacketed Mixing Vessel is having uses in pharmaceutical, cosmetic, chemical, ayurvedic, agriculture, paint, beverages, and allied industries.

Application of Jacketed Mixing Vessel

  • Herbal Shampoo manufacturing
  • Liquid Soap manufacturing
  • Hand Wash manufacturing
  • Sanitizer manufacturing
  • Dish Wash manufacturing
  • Laundry Soap manufacturing
  • Emulsion manufacturing
  • Liquid Gel/Ultrasound Gel manufacturing
  • Syrup, Suspensions and Oral Liquid Gel manufacturing
  • Paint, Coating & Chemicals manufacturing
  • Salient Features of Jacketed Mixing Vessel

    • All contact parts made from Stainless Steel 304/316/316L materials.
    • Available in capacity ranging from 5 liters to 20000 liters.
    • Offered in Standard model and Vacuum rated model.
    • Jacket with heaters can be offered for heating arrangement.
    • Discharge height can be offered as per user requirements.
    • Castor wheel and handle provided for easy movement of equipment.
    • Heavy duty legs provide hence no need for foundation structure at user end.
    • Flush bottom ball valve can be offered optionally to minimize residual.
    • Standard as well as Flameproof/Explosion Proof motors can be offered.
    • Differential RPM can be offered as per individual process requirements.
    • PLC system with Graphical User Interface can be offered optionally.

    Technical Specication of Jacketed Mixing Vessel

    • Capacity 100 Liters to 50000 Liters
    • Power Supply 0.5 H. P. to 100 H. P.
    • Power Voltage 440 volts, 3 phase, 50 hertz
    • Gearbox Helical type / similar
    • Stirrer Type Pitch/Paddle/Anchor type Stirrer
    • Stirrer MOC Stainless Steel 304/316/316L
    • Stirrer RPM Suitable RPM based on process requirements.
    • Stirrer Mounting Orientation
    • No. of blades Two
    • Top Mounted or Bottom Mounted
    • Shaft Diameter Suitable Diameter
