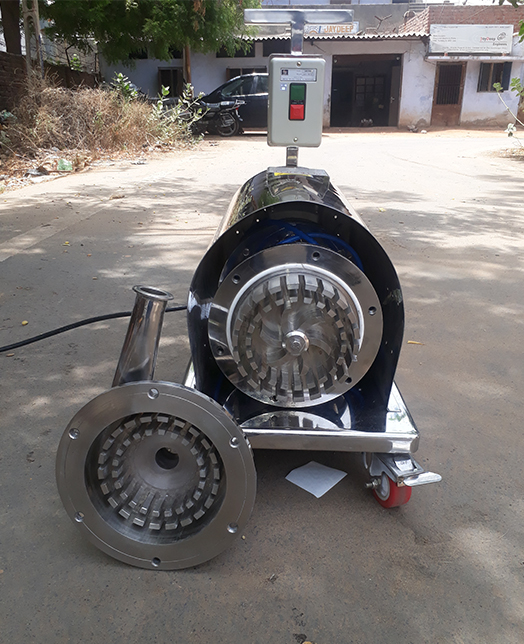

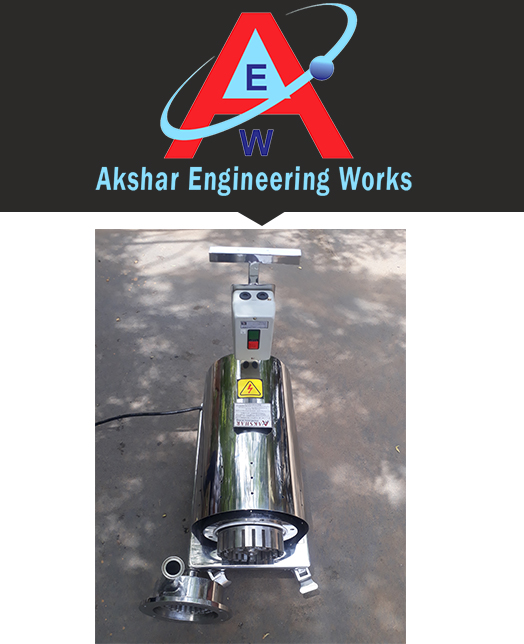

SS INLINE HOMOGENIZER

Inline Homogenizer in Inline agitation system, the possibility of materials - Liquid or Solid passing through it, without subjected to intense hydraulic and mechanical shear actions is zero. Here suction pipe (inlet pipe) is centrally mounted & outlet is radially mounted, therefore it is physically impossible for any material to pass from inlet to outlet without exposed to agitation. The machine is versatile & has completely revolutionized the traditional mixing techniques. Here close tolerance of rotor with the stator produces high hydraulic shearing & mechanical action that ensures that material entrapped between rotor & stator is subjected to tremendous shearing actions each minute. In-line homogenizer, emulsifying mixer, emulsifier mixer.

This Pump is used where you require a maximum working pressure of 8 bar, maximum liquid temperature -15°C to +80°C and Ambient temperature: -15°C to +40°C.

FEATURES & SPECIFICATIONS

Sanitary high shear mixer A fine high shear In-Line mixer doesn't simply mix. It emulsifies, homogenizes, suspends, disperses and disintegrates solids. Each mixer, with its precisionengineered rotor/stator worked, far outperforms conventional mixers, cutting processing times by up to 80%, improving quality, product consistency and process efficiency. Inline high shear mixer

  • FEATURES

    • Highly powered device working on the rotor/stator principle.
    • High pumping efficiency, due to design of rotor and stator.
    • Multi-chamber system (dispersing and homogenizing zone).
    • Robust stainless-steel design, suitable for handling practically all products
    • Easy to integrate into a closed pipeline system (inline system).
    • All Contact Parts Made out Of SS 316 / SS 316 L Quality Material Conforming to CGMP norms.

    TECHNICAL SPECIFICATIONS

    • The Homogenizers are useful for Manufacturing suspensions, emulsions and homogeneous solutions.
    • The equipment’s consist of stator and Rotor assembly made out of Stainless Steel.
    • The Stator is supported on the Motor by means of Stainless Steel supporting rods and the Rotor moves inside the Stator.
    • The Stator is provided with slots and the Material passes through these slots several times and thus size reduction and homogenization is obtained.
    • The Unit is fixed on the self supported M.S. Stand having castor wheels.
    • The up and down movement is obtained by means of wire rope arrangement provided.
