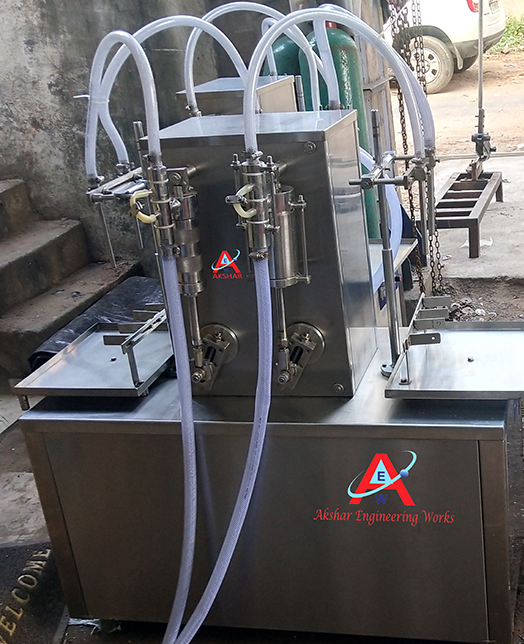

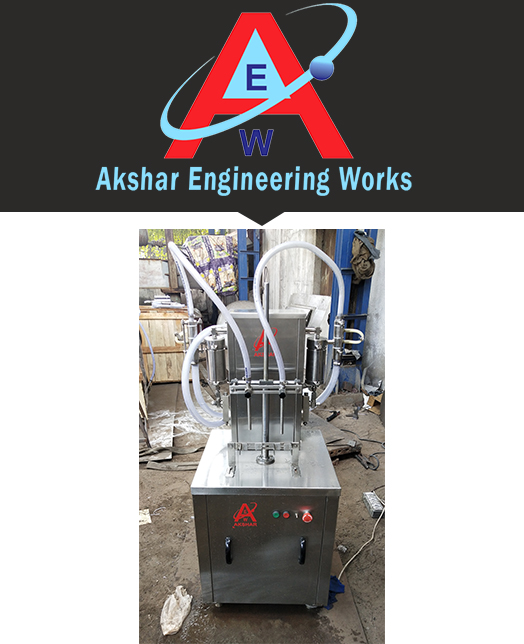

SEMI AUTOMATIC TWO HEAD BOTTLE FILLING MACHINE

AKSHAR semi-automatic volumetric liquid filling machine is built with precision and conviction on a sturdy welded MS frame that is completely enclosed in stainless steel sheets and doors. They are provided to facilitate the servicing of machines.

The machine works on a volumetric principle where the unit is made compact, versatile and is further enclosed in stainless steel for elegant matt finish body. The containers have to be placed manually at the platform of the machine below the filling nozzles. Here, the preset motor-operated syringes fill the defined volume into the container. To avoid the liquid spill, a bottle guide is provided that aids in centering the container below nozzles. The fill size can be quickly set, thus, offering ease in operation.

SALIENT FEATURES

  • Semi-Automatic with filling range from 5 ml to 1000 ml.
  • Accuracy ± 1 % in single doze.
  • Three different speeds depending upon capacity of bottles.
  • Body covered with SS sheet.
  • All contact parts SS 316.
  • A unit to fill variety of liquid and can be used for various type of containers.
  • Minimum change over time from one size to another container or fill size.
  • TECHNICAL SPECIFICATIONS


    Model ASLF-40
    Output / Hour* Depends on operator
    Number of head/Syringe 2 Nos.
    Fill Size*** 5 ml to 1000 ml
    Electric Specification** 1 HP / 415 Volts / 50 Hz (Main Machine)
    Change parts required (A) Syringes, (B) Nozzle, (C) Inlet & outlet hose pipe

    INPUT SPECIFICATIONS


    Container Neck Diameter** Minimum 22 mm***
    Container Size Round Shape (A) ∅ 20 mm to ∅ 60 mm***
    (B) 58 mm to 120 mm***(Height option for another bottle height available)
    Flat / Square (A) 30mm to 70 mm (Length)***
    (B) 20 mm to 50 mm (Width)***
    (C) 58 mm X 120 mm*** (Height option for another bottle height available)
    * Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc.
    ** Can be customized.
    *** With help of change parts.

    UTILITY REQUIREMENT


    Electrical supply 3 Phase + Neutral + Earthing
    Electrical Load 0.5 Kw
